Logiball Multi-Range Dual Seal Inflatable Plugs

The safest, fastest & most economical way to perform low pressure air tests on
Dual Containment Piping Systems!

In stock and available: 2"/4" - 3"/6" - 4"/8" - 6"/10" - 8"/12"

The Logiball Multi-Range Dual Seal Inflatable Plugs are used to isolate and test annular spaces of dual containment piping systems. The plugs easily slide between the carrier and containment pipe. Once positioned, air is inserted into the plugs where the inner wall compresses against the outside surface of the carrier pipe and the outer rubber wall expands to seal against the inside wall of the containment pipe. Two flow-thru ports are provided to insert and monitor the test medium (air) in between the two inflated plugs. Dual Containment Pipe Plugs
Dual Containment Pipe Plugs The design allows for multiple ranges of annuluses possible in dual containment piping systems. Other sizes are available on request. Inflation controls and pressure monitoring equipment are available on request.
The safest, fastest & most economical way to perform low pressure air tests on Dual Containment Piping Systems! Dual Containment Pipe Plugs


Product # Carrier Pipe O.D. Min Containment Pipe
I.D.
Max Containment Pipe
I.D.
Min / Max Differential
2"-4" DCTP 2.375" 3.633" or 4" SDR 11 3.938" or 4" SDR 17 1.25" to 1.55"
3"-6" DCTP 3.5" 5.349" or 6" SDR 11 6.084" or 6" SDR 26 0.925" to 1.292"
4"-8" DCTP 4.5" 6.963" or 8" SDR 11 7.921" or 8" SDR 26 1.232" to 1.711"
6"-10" DCTP 6.625" 8.679" or 10" SDR 11 9.874" or 10" SDR 26 1.027" to 1.625"
8"-12" DCTP 8.625" 10.293" or 12" SDR 11 11.711" or 12" SDR 26 0.834" to 1.543"

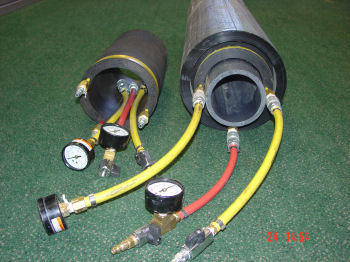

Dual Containment Hose Kits

Dual Containment Pipe Plugs Hose kits are available in standard lengths of 1'(HK1), 5' (HK5), 10' (HK10) and 20' (HK20).
Each kit contains 3 air lines for A) test plug inflation-RED B) test media induction-YELLOW and C) annulus psi monitoring-YELLOW.
Each hose comes with a quick disconnect, pressure gauge, and shut-off valve with 1/4" fpt supply line connection.

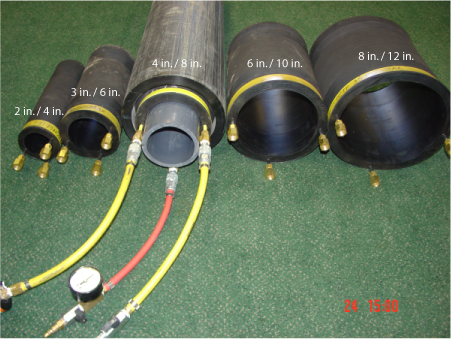

Range of Plugs for Dual Containment

Dual Containment Pipe Plugs
